產品特性：

THS2-600Z測試報告 （點擊查看）

THS2-2000Z測試報告（點擊查看）

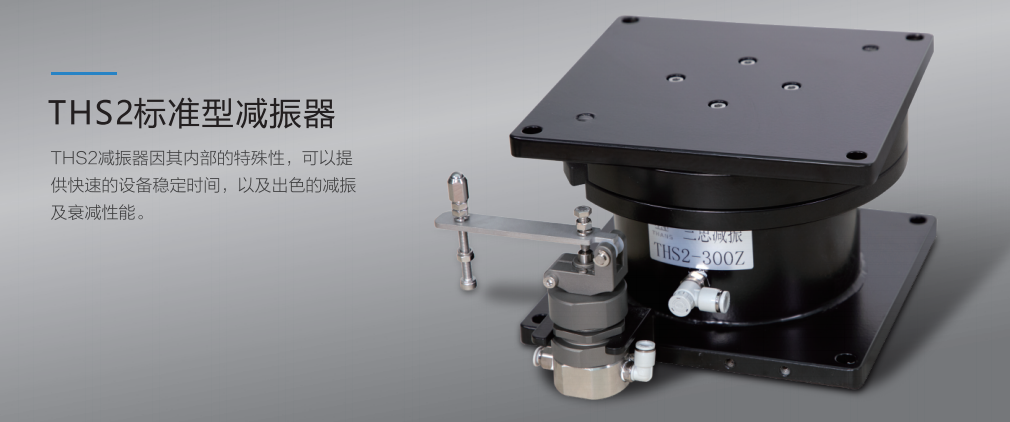

THS2 series standard vibration isolator

The THS2 series is a standard pneumatic vibration isolator offer fast settling time and excellent isolation performance with its special interior structures.




在垂直和水平方向提供高水平的減振性能。
THS2減振器采用兩室系統，用節流孔將氣室與阻尼室相連接。
兩室結構能夠有效衰減傳遞到設備的振動，使運動平臺所需穩定時間降低，并且固有頻率更低。
如需要較高的水平度, 可將精密調平閥（士0.05mm)安置在減振器上，減振性能更好。
在THS2系列減振器上安裝內置型油阻尼，搭載運動平臺的設備穩定時間得以縮短，減振器剛性提升。




Product Introduction:

THS2 series offer excellent isolation performance in both horizontal/vertical level.

The dual chamber system of THS2 consisits of an air chamber and a damping chameber connected by two orifices,which can effectively reduce the isolation transmitted, shorten the settling time of the platform and lower the Natural frequency.

If higher level of repeatability and better Isolation performance is required, the precision leveling valve with repeatability of 0.05mm can be equipped with the vibration isolation system.




THS2 pneumatic isolators incorporating the built-in oil damper can shorten the settling time of the equipment with linear stage, and increase the stiffness of the platform

產品結構說明：

減振方式：氣動減振
固有頻率：垂直/水平=2.5-3Hz

10Hz減振率：80-95%
自動調整水平：是
調整水平重復性：1、標準調整精度±1.0mm  2、高精度調整精度±0.05mm

Isolation type: pneumatic

Natural frequency: horizontal/vertical =2.5-3Hz

Isolation performance: 80-90% at 10Hz

Automatic leveling: Yes

產品用途：

面板設備、光學設備、檢測設備、半導體設備、醫療設備、航天軍工設備、精密運動平臺等。
Panel equipment, Optical equipment, Testing equipment, Semi-conductor equipment,Medical Aerospace and military industry, Precision motion platform etc.

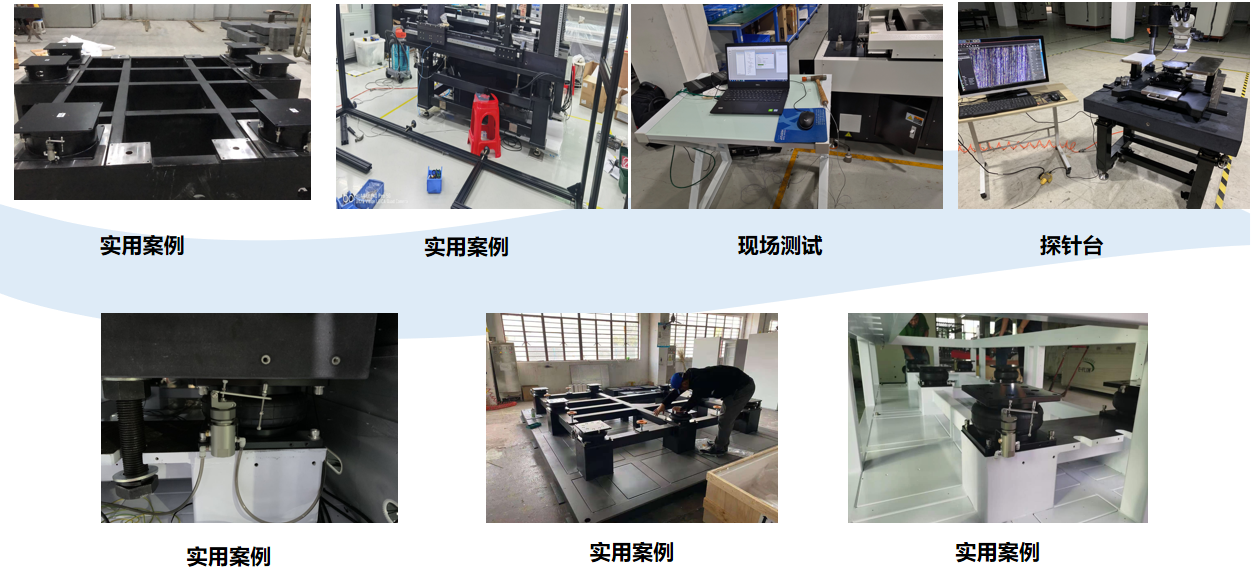

應用案例
