產品特性：

歐規減振器測試報告（點擊查看）



在垂直和水平方向提供高水平的減振性能，適用于低速輕負載運動平臺。

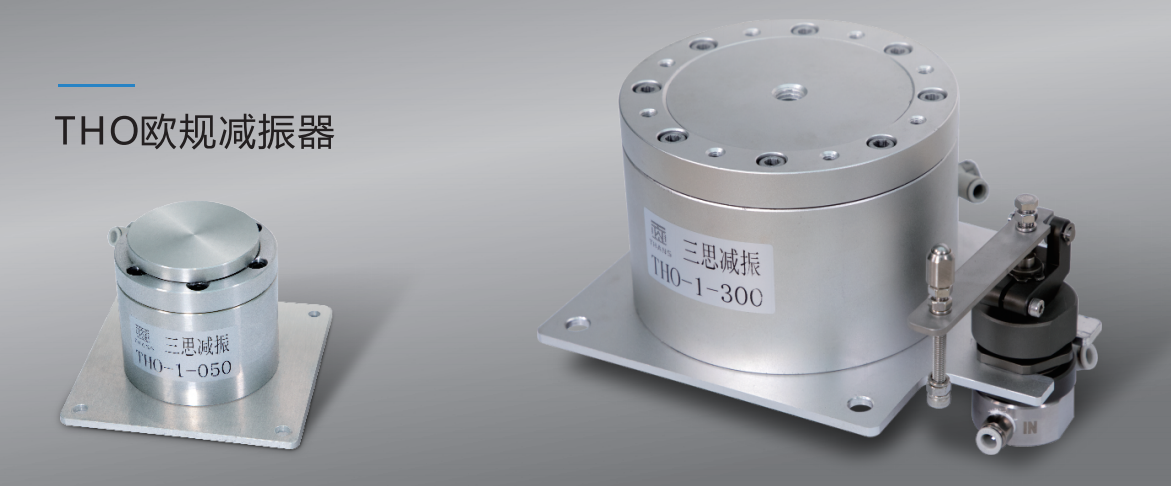

THO系列減振器采用兩室系統，用氣管將兩室相連接。兩室結構能夠有效衰減傳遞到設備的振動，使裝載附件的設備所需穩定時間降低。
如需要較高的水平度，可將精密(士0.05mm)調平閥門安裝在減振器上。

Product introduction

THO series provides high-level vibration isolation performance in both vertical and horizontal direction, it is suitable for moving platform of low velocity and light load.

THO series adopt dual chamber system connected by air tube, which can effectively reduce the vibration transmitted to the equipment, thus shorten the settling time.

Precision leveling valves are needed to install on the isolator if high levelness is required.

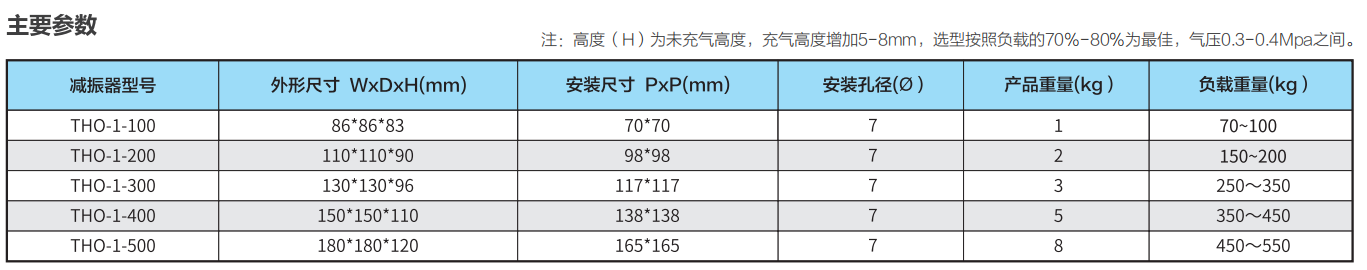

產品結構說明：

固有頻率：垂直/水平=2.5-3.5HZ

10Hz減振率：80-90%
自動調整水平：是

Vibration isolation type:Pneumatic

Natural frequency: Horizontal/Vertical =2.5-3.5Hz

Vibration isolation performance at 10Hz: 80-90%

Auto leveling:Yes

產品用途：

光學設備、檢測設備、半導體設備、航天軍工設備等。

Optical equipment, testing equipment,semi-conductor equipment, aerospace and military equipment.
